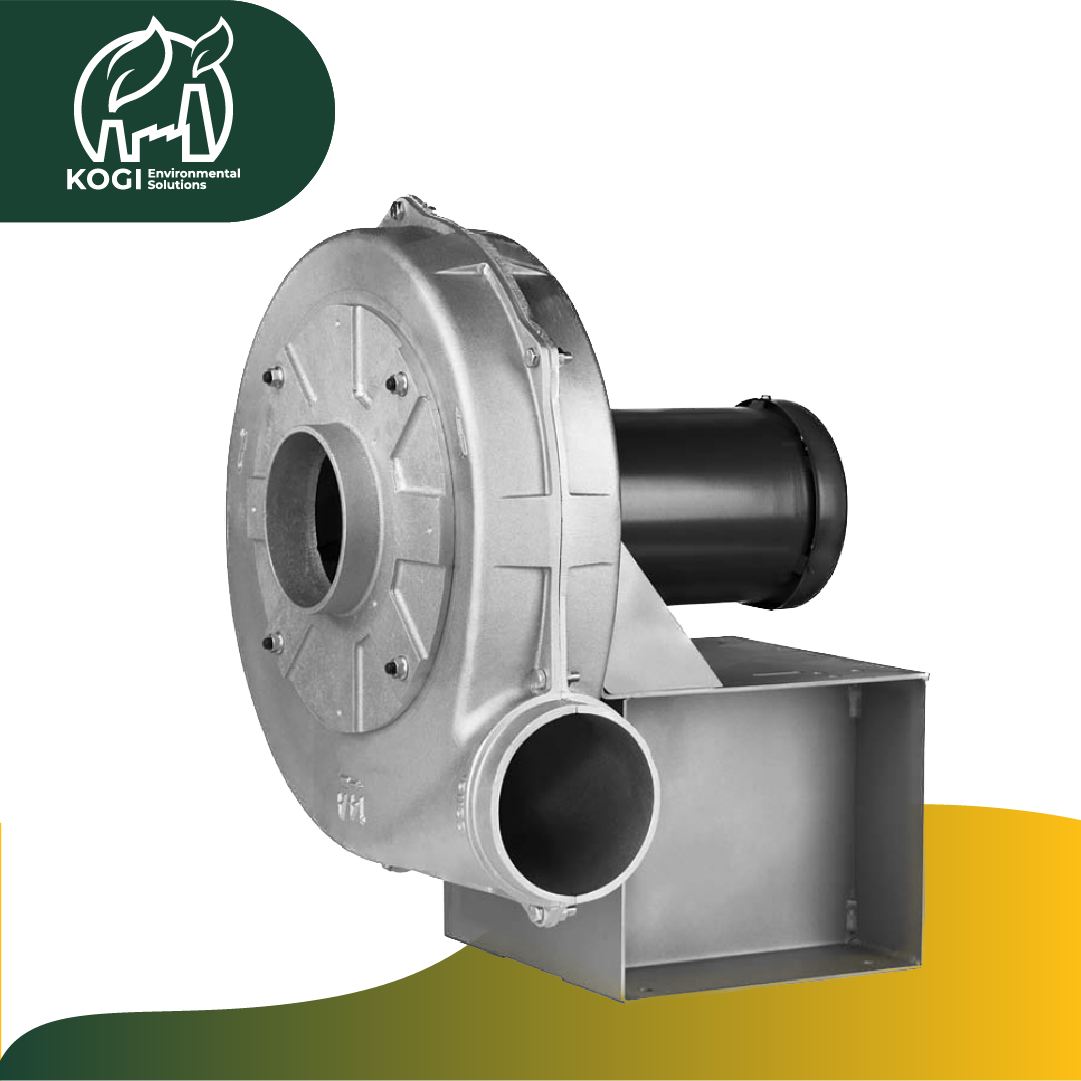

PB-8 Cast Aluminum Pressure Blower – PB Series

PB-8 Cast Aluminum Pressure Blower – PB Series

The PB-8 Pressure Blower is a compact, high-performance cast aluminum blower designed for industrial air handling applications. With its spark-resistant construction, lightweight housing, and corrosion-free material, it ensures durability and reliable operation in demanding environments.

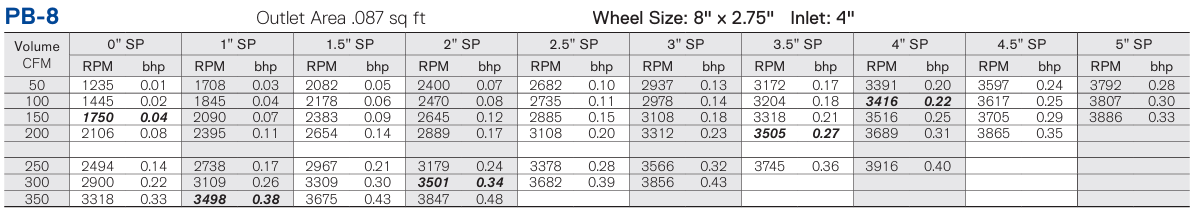

Specifications:

• Wheel Size: 8" x 2.75"
• Inlet Diameter: 4"
• Outlet Area: 0.087 sq. ft.
• Capacity: Up to 344 CFM (at 1" SP)
• Construction: Cast aluminum, AMCA Type B spark resistant
• Temperature Rating: Standard up to 200°F (higher with special design)
• Duty: Continuous

Dimensions:

• Housing (nominal): 7 3/8" x 4 7/8"
• Overall Depth: 4"
• Motor Frame: 56
