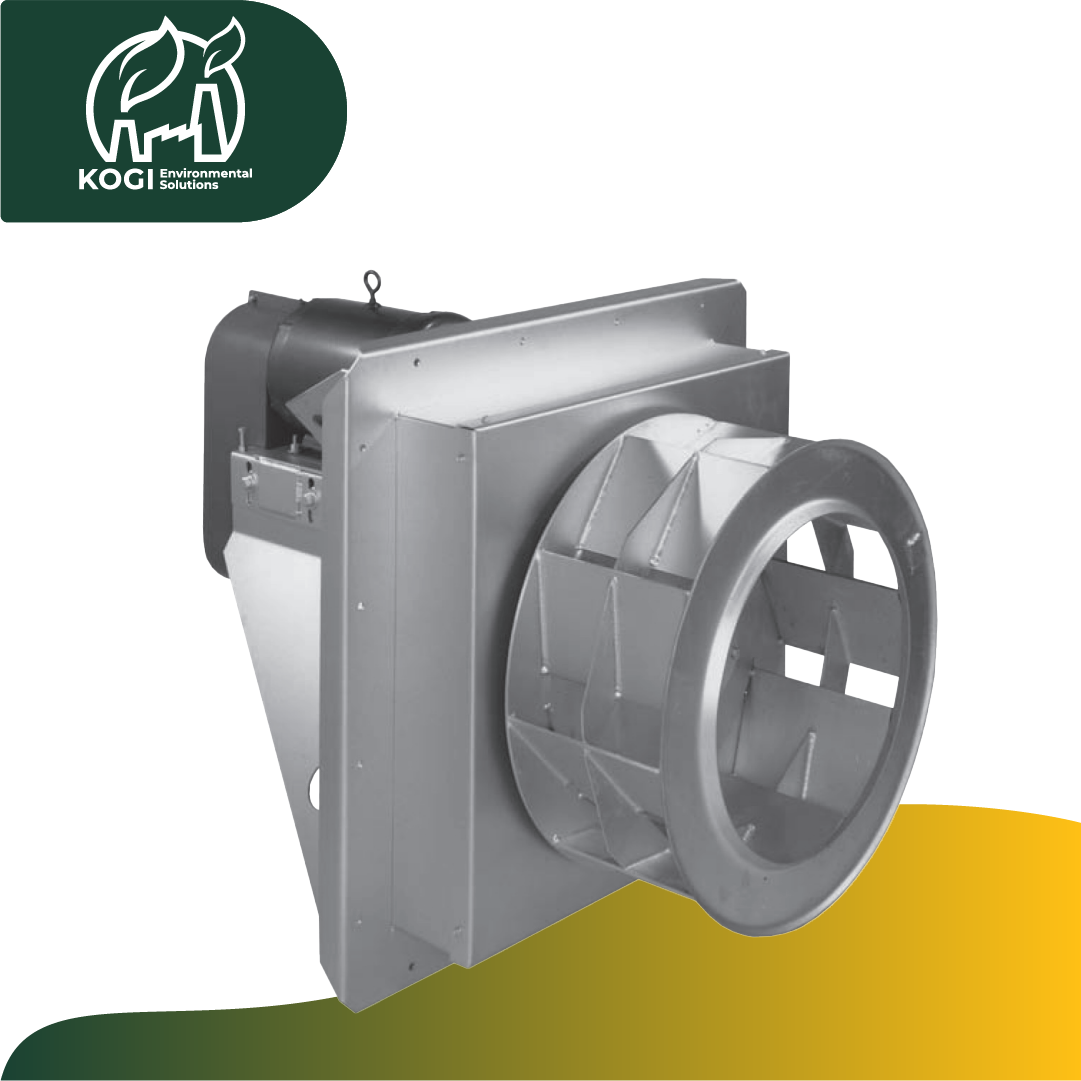

Model CPF: Backward Inclined Plug Fan

Model CPF: Backward Inclined Plug Fan

The Model CPF Backward Inclined Plug Fan from Cincinnati Fan delivers high-efficiency airflow for demanding industrial applications such as ovens, dryers, kilns, and dust collection systems.

Designed for AMCA Class II and III performance, this centrifugal fan handles up to 100,000 CFM and 25" SPWG. Available with direct or belt-driven configurations, the CPF series can be supplied with or without a housing and customized in aluminum or stainless-steel construction.

Each unit is factory-tested for balance and alignment, ensuring long service life and reliable operation. Optional insulated plug boxes, extended shafts, and continuous welded housings make it ideal for high-temperature environments up to 800°F (444°C).

Key Features:

• Capacities up to 100,000 CFM and 25″ SPWG

• Operates at temperatures up to 800°F (444°C) with high-temp construction

• AMCA spark-resistant construction (A, B, or C types)

• Backward inclined wheel design for optimal efficiency

• Multiple wheel widths (50–100%, in 5% increments) for precise performance

• Heavy-gauge steel frame and bracing for durability

• Grease-lubricated, pillow block bearings rated for 150,000 hours

• Arrangement 9 belt drive includes belt guard and lube lines

Applications:

• Oven and dryer recirculation

• Industrial heating systems

• Kilns and freezers

• Dust collection and air filtration systems

Built for efficiency, durability, and precision, Cincinnati Fan’s Model CPF is the ideal choice for industrial air handling under extreme conditions.
