HDBI-150 Backward Inclined Centrifugal Fan

HDBI-150 Backward Inclined Centrifugal Fan

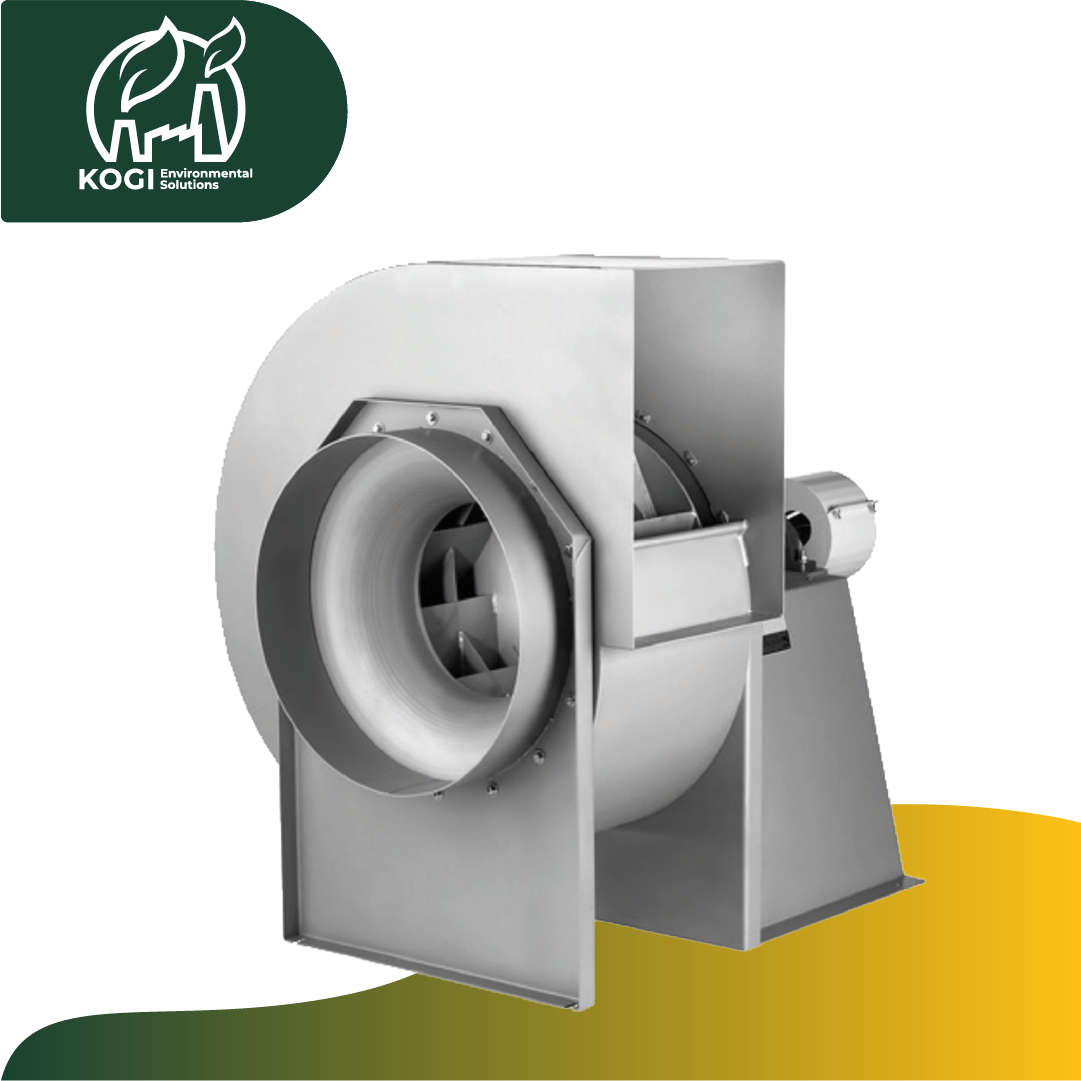

The Cincinnati Fan HDBI-150 is a heavy-duty backward inclined centrifugal fan, part of the trusted HDBI Series. Designed for industrial air handling applications, this model delivers reliable airflow with lower maintenance and higher efficiency compared to forward-curved or radial fans.

Key features include:

• Backward inclined blades fabricated from heavy-gauge, high-strength steel for long-lasting performance.

• High efficiency with reduced brake horsepower consumption and lower noise levels.

• Flexible arrangements (belt or direct drive options) for a wide range of industrial applications.

• Temperature resistance up to 300°F (149°C) in standard design, with high-temperature construction available up to 750°F (398°C).

• Compact, durable design requiring less space and reduced supporting structure.

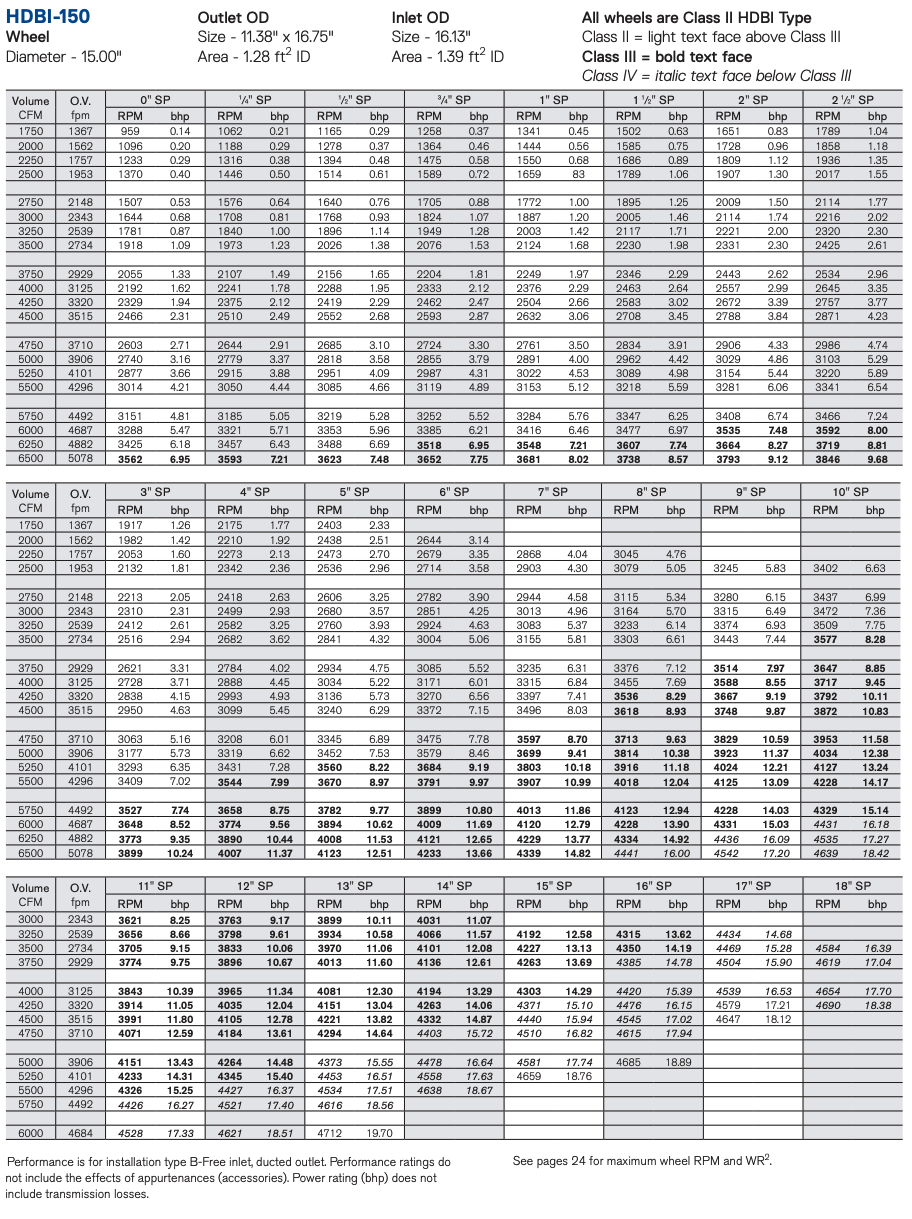

The HDBI-150 is AMCA certified for air performance, ensuring consistent and tested results. Ideal for use in factories, process industries, material handling systems, and facilities requiring dependable ventilation solutions.

Arrangements

Arrangement 1 – Belt Drive	Arrangement 4 – Direct Drive	Arrangement 4HM – Direct Drive
Arrangement 8 – Direct Drive	Arrangement 9 – Belt Drive	Arrangement 9CB – Belt Drive
Arrangement 10 – Belt Drive
