BE-19 Radial Blade Exhauster

BE-19 Radial Blade Exhauster

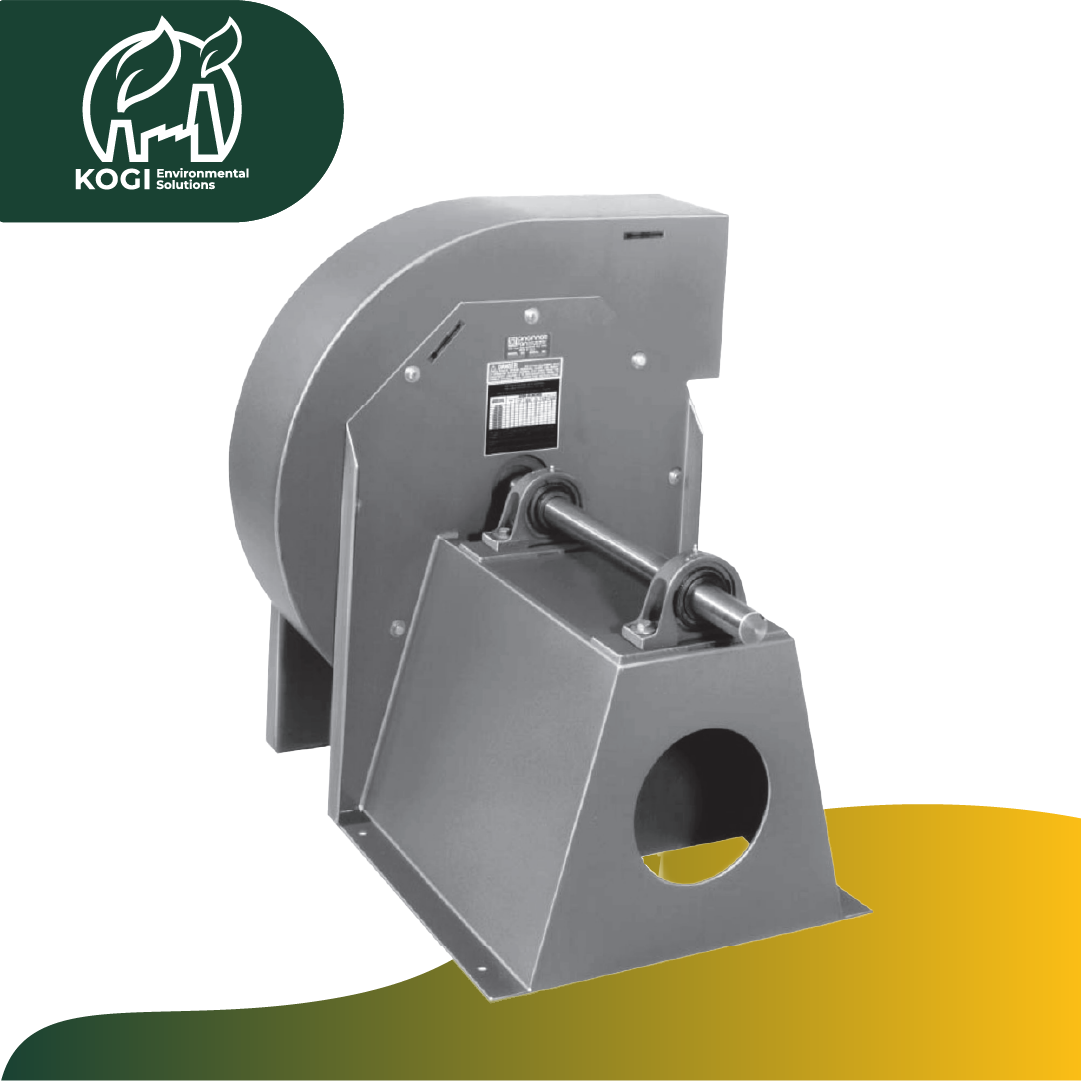

The Cincinnati Fan RBE-19 is a heavy-duty, industrial radial blade exhauster designed for high-pressure air handling in demanding environments. With its rugged welded steel construction, dynamically balanced wheel, and heavy-duty pillow block bearings, the RBE-19 delivers reliable performance for material handling, dust collection, combustion air, and general industrial ventilation applications.

Key Features

• Wheel Design: Diameter - 33",  radial blade wheel, welded steel blades for durability, dynamically balanced for smooth operation.

• Capacity & Performance: Available in Series 18, 25, 32, and 40 to meet different static pressure and volume requirements; wheel diameter of 33" with an inlet area of 1.96 ft² and outlet area of 1.97 ft².

• Drive Arrangements: Offered in multiple AMCA-standard arrangements including belt drive (Arrangements 1, 9, 9CB, 10) and direct drive (Arrangements 4, 4HM, 8) for flexibility in installation.

• Operating Temperatures:

  • Standard belt drive: up to 300°F

  • High-temperature design: up to 750°F

  • Standard direct drive: up to 200°F

  • High-temperature direct drive: up to 400°F.

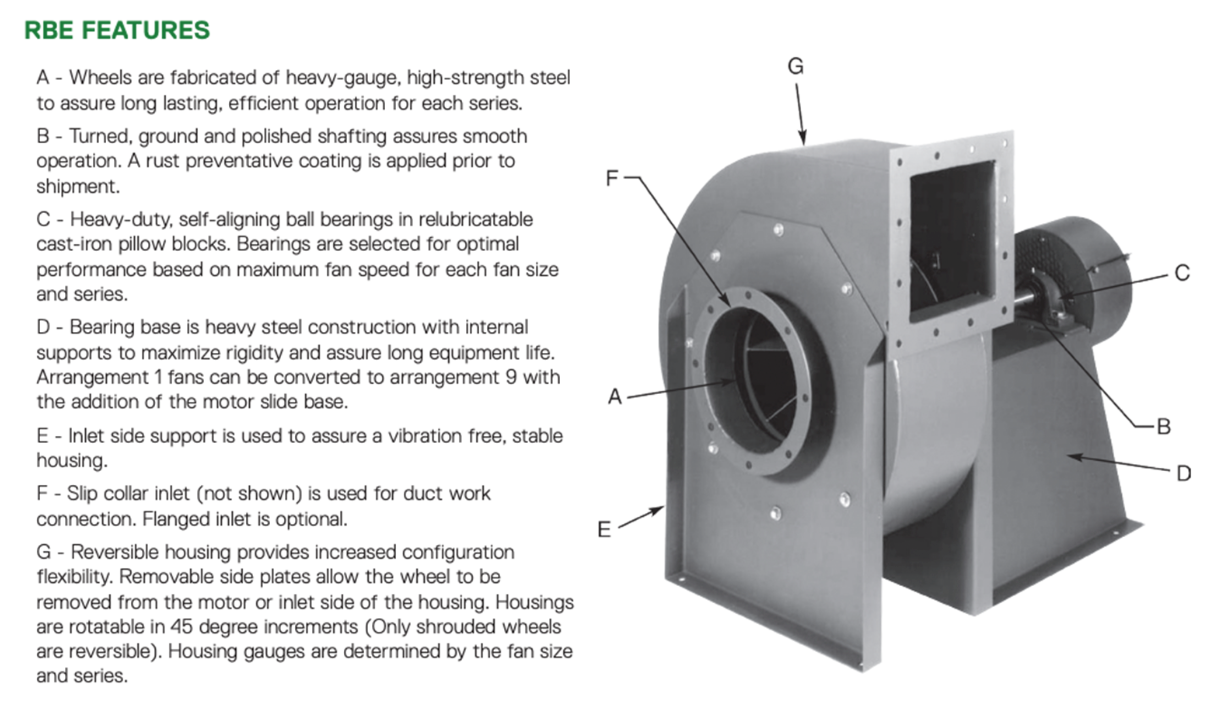

• Construction: Continuously welded housings to prevent pulsation, steel parts cleaned, phosphatized, and finished with oven-cured gray enamel; all bearings are grease-lubricated, heavy-duty, self-aligning ball bearings.

• Reversible Housing: Housings are rotatable in 45° increments for flexible discharge positioning.

• Materials: Available in standard steel, aluminum, or stainless steel for corrosion resistance.

Typical Applications

• Pneumatic conveying systems

• Industrial dust collection

• Combustion air supply

• Cooling and drying systems

• Air knives and high-pressure cleaning systems

Dimensions (Key)

• Outlet OD:  Size - 18.75" x 15.875" / Area - 1.97 ft2 ID

• Inlet OD: Size - 19" / Area - 1.96 ft2
